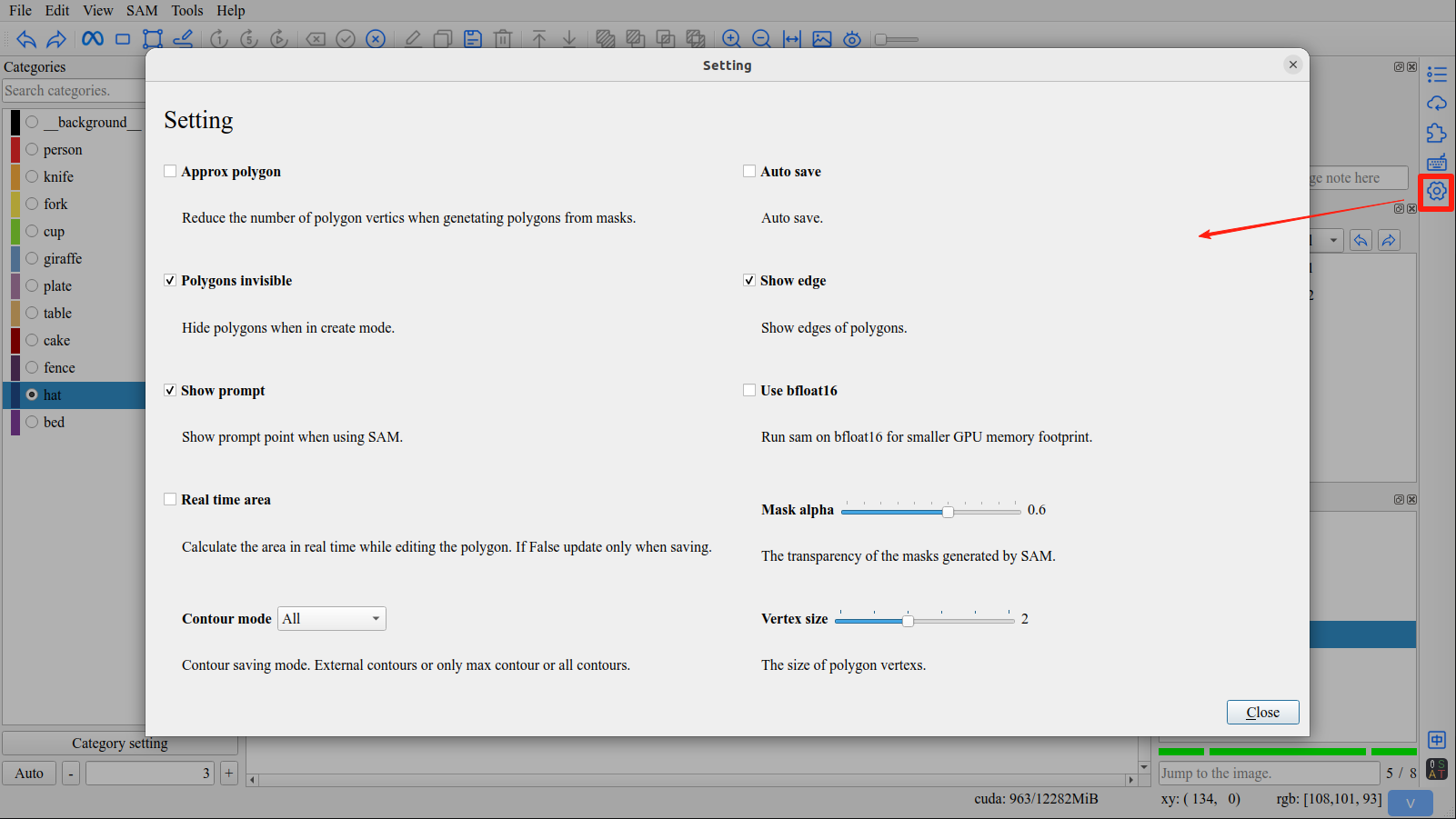

1. Setting

Click Setting button in right toolbar to open setting interface.


1.1 Approx Polygon

Reduce the number of polygon vertics when genetating polygons from masks.

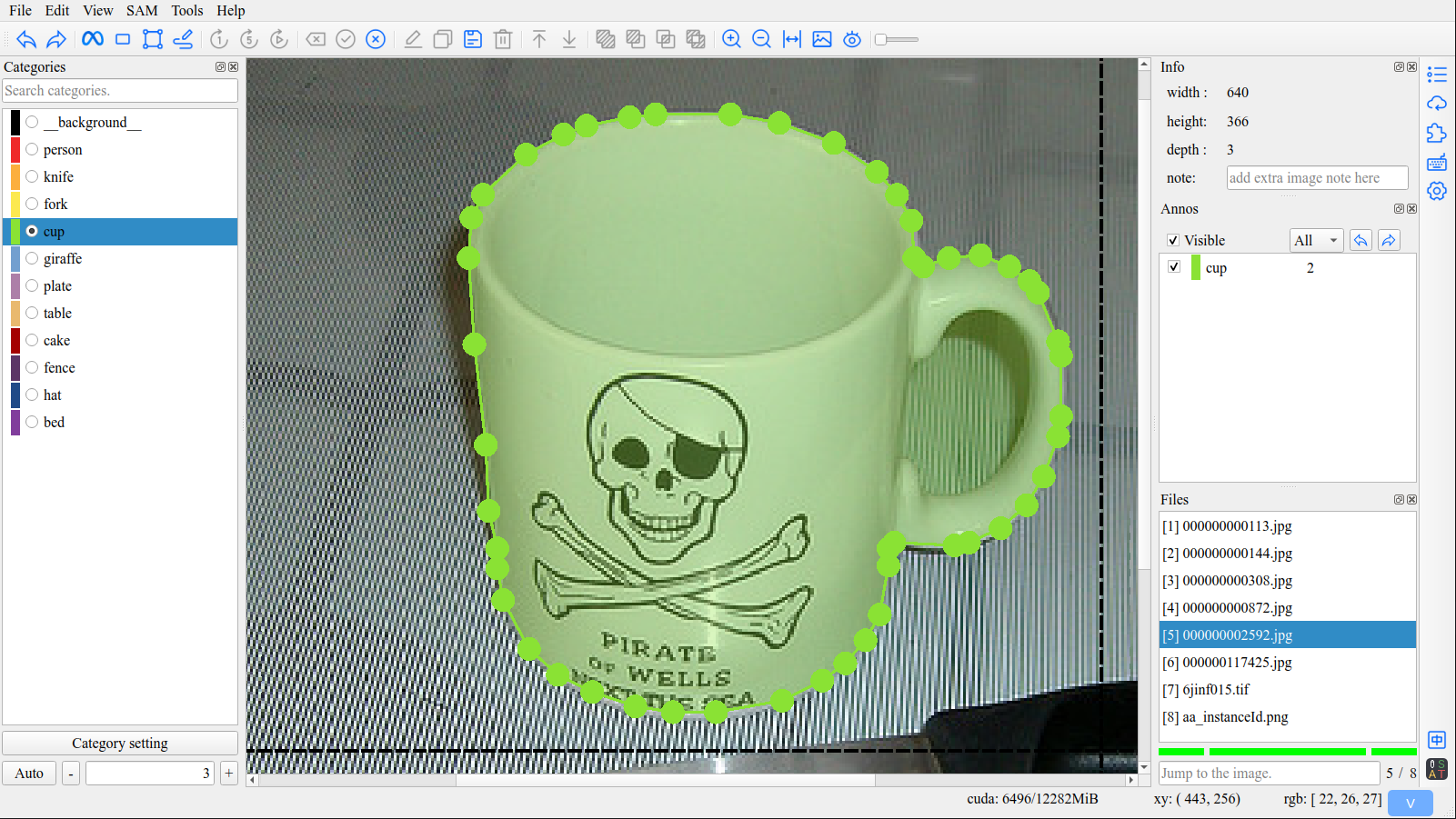

  • Enabled

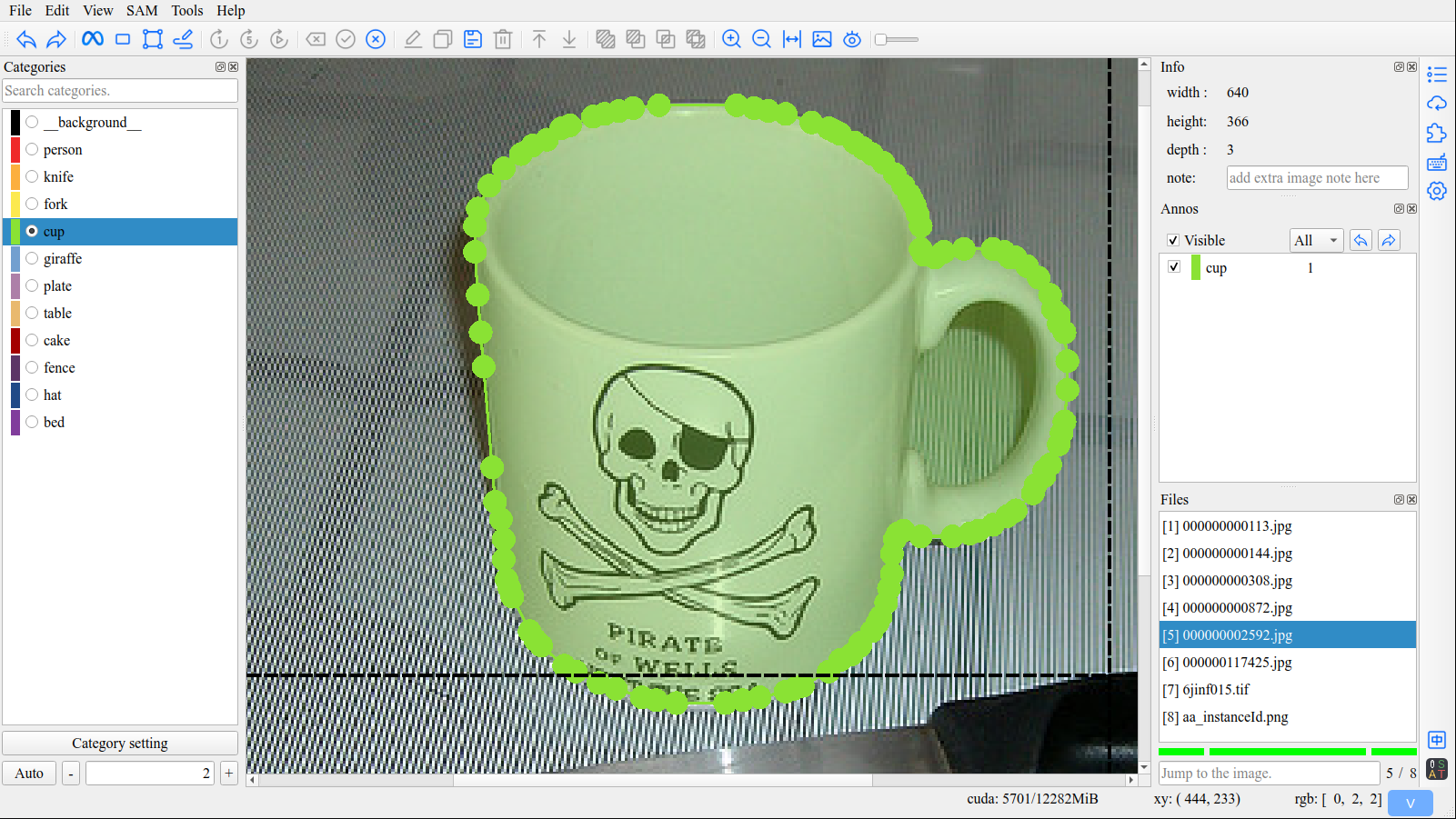

  • Disabled


Tip

Applies after Contour Method.

1.2 Use Bfloat16

Run sam on bfloat16 for smaller GPU memory footprint.

1.3 Use Video Segmentation

Close video segmentation feature for smaller GPU memory footprint.

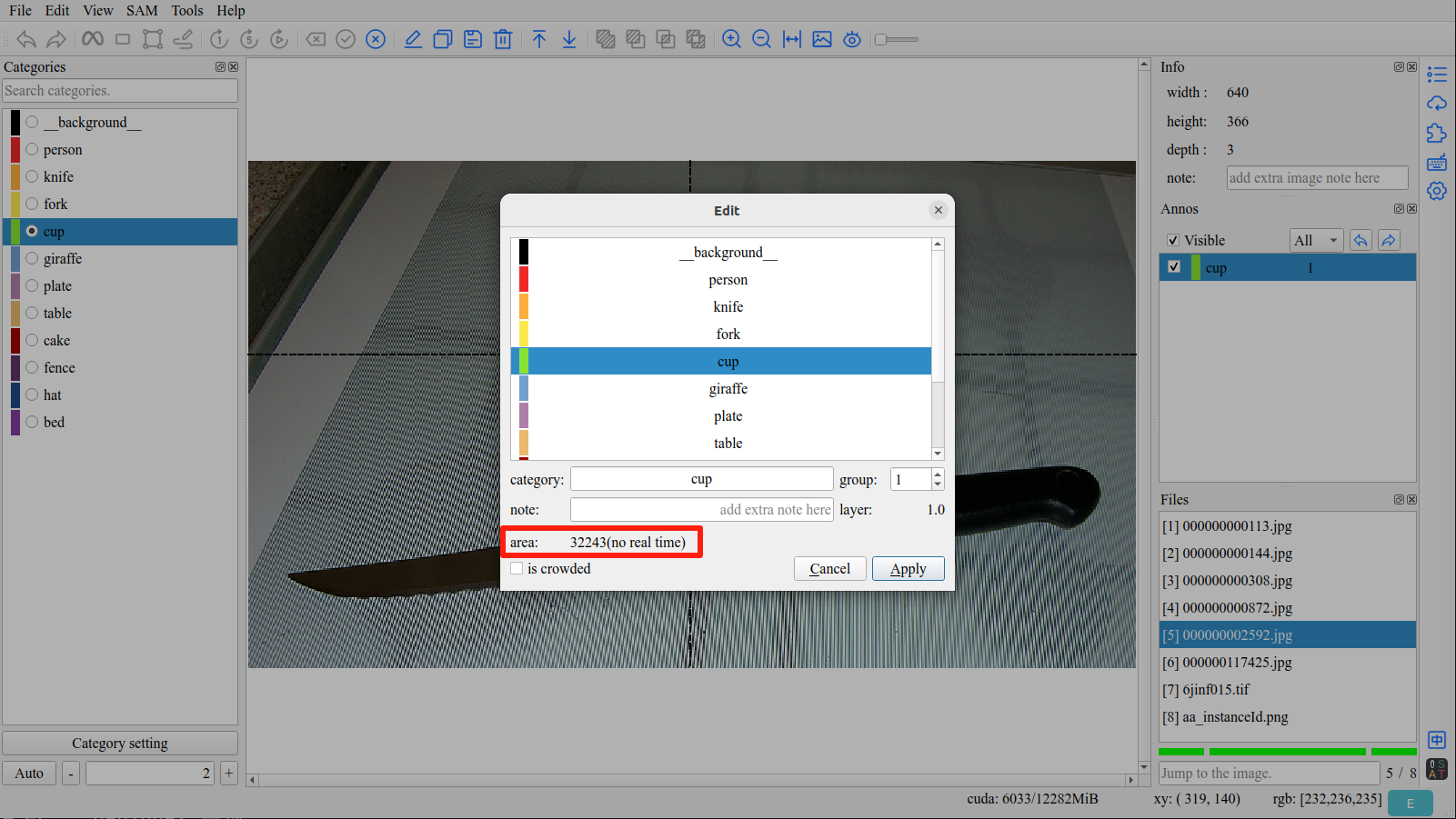

1.4 Real Time Area

Calculate the area in real time while editing the polygon. If false update only when saving.


1.5 Mask Alpha

The transparency of the masks generated by SAM.

1.6 Contour Mode

  • External Contours


Tip

Save all external contours.

  • Only Max Contour


Tip

Save the largest contour.

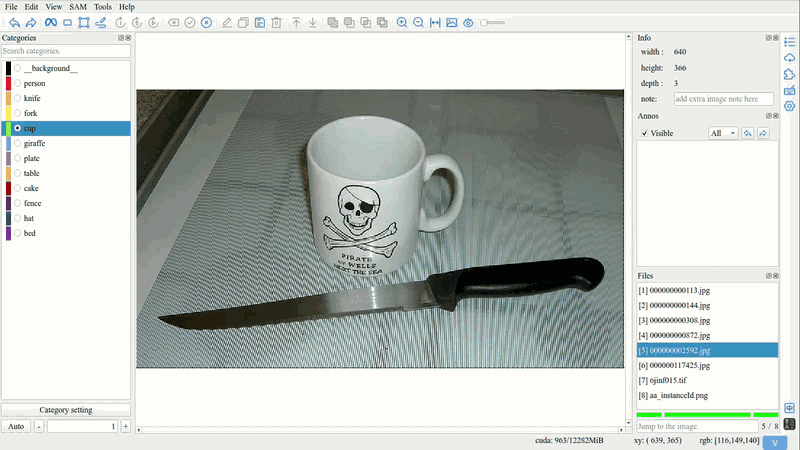

  • All Contours


Tip

Save all contours, setting the category of inner contours to __background__.

1.7 Contour Method

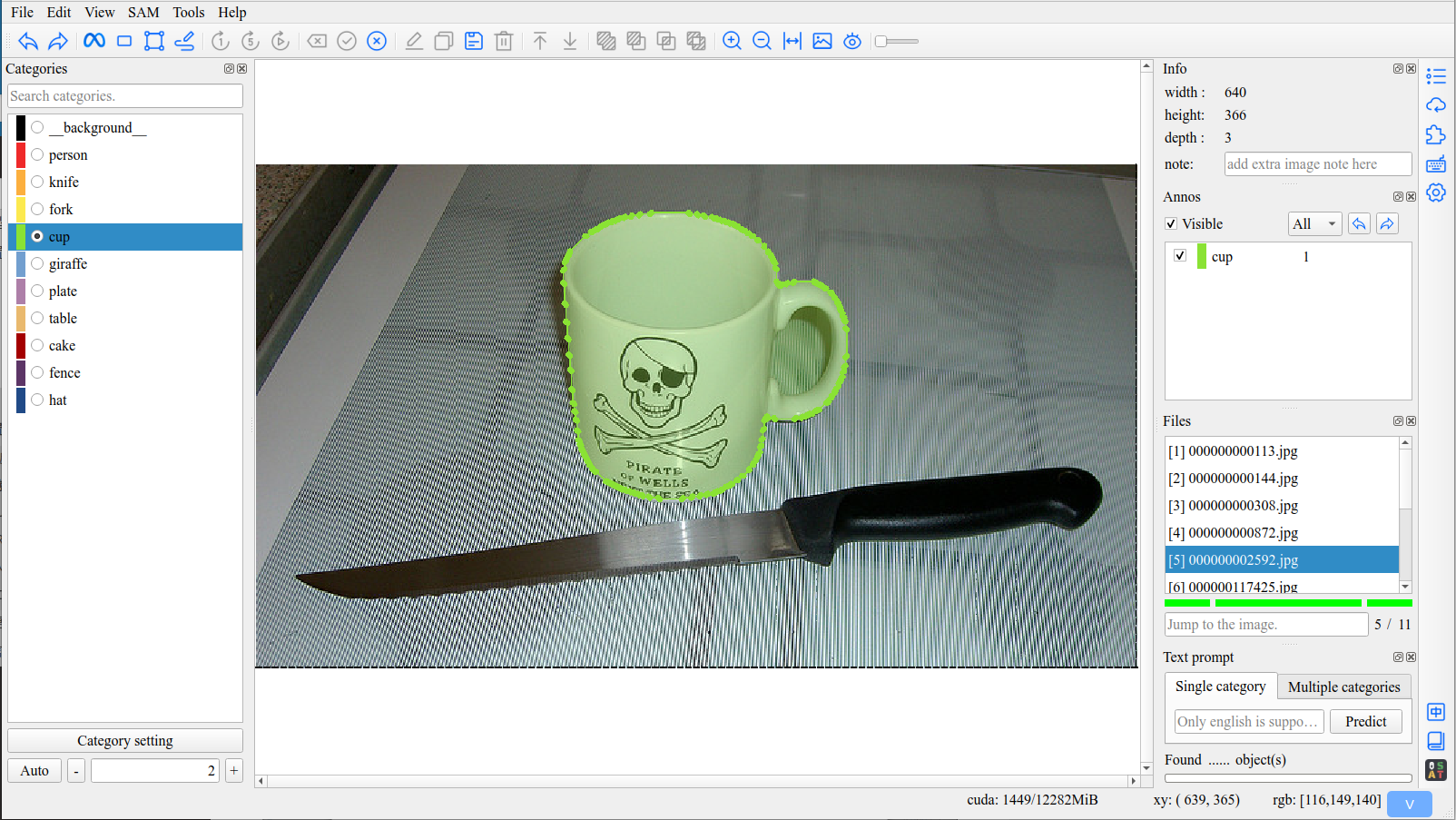

  • Simple


Tip

The default method. It can handle most situations.

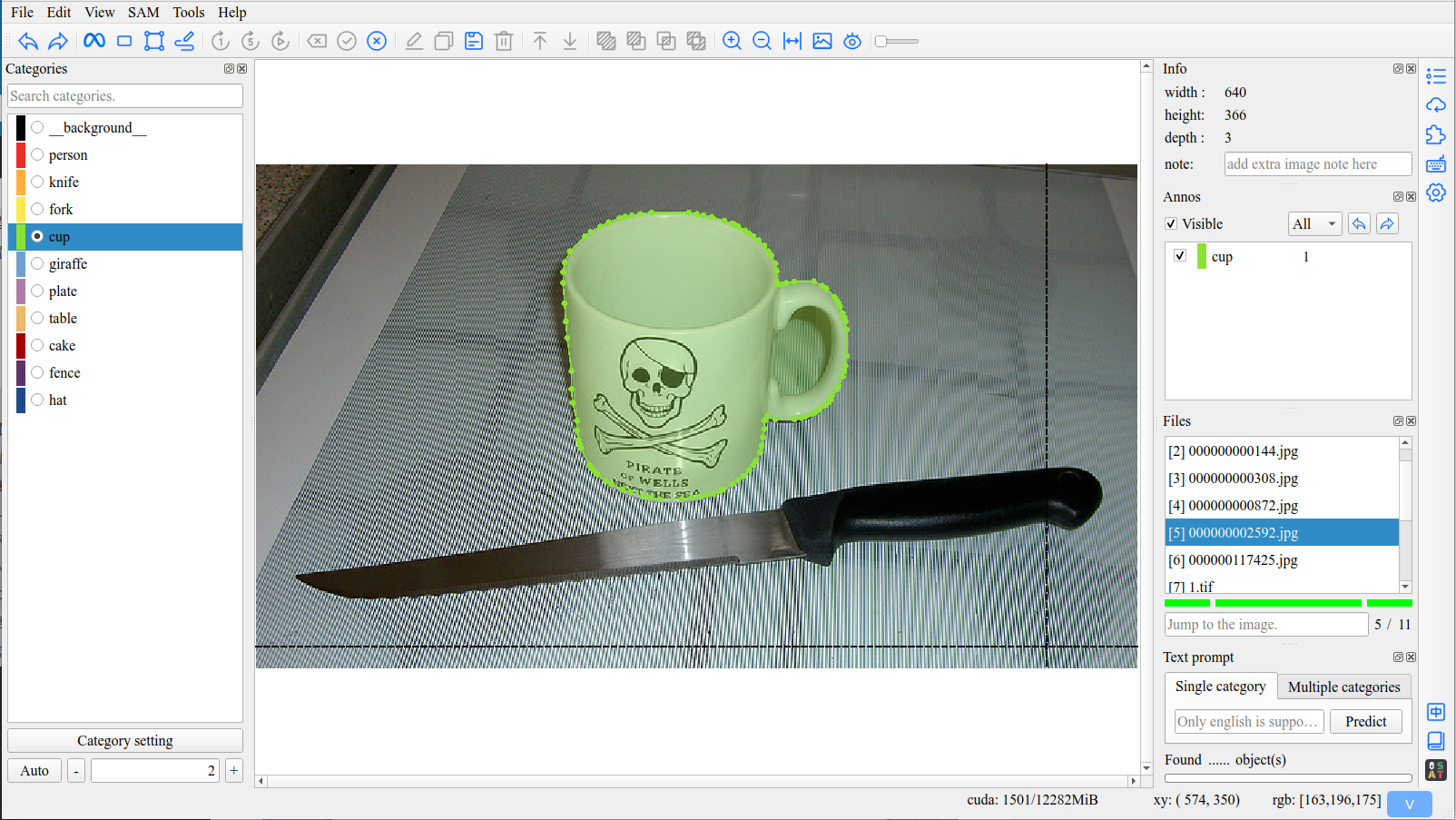

  • TC89_KCOS


  • None


Tip

The None method will Keep all vertices.

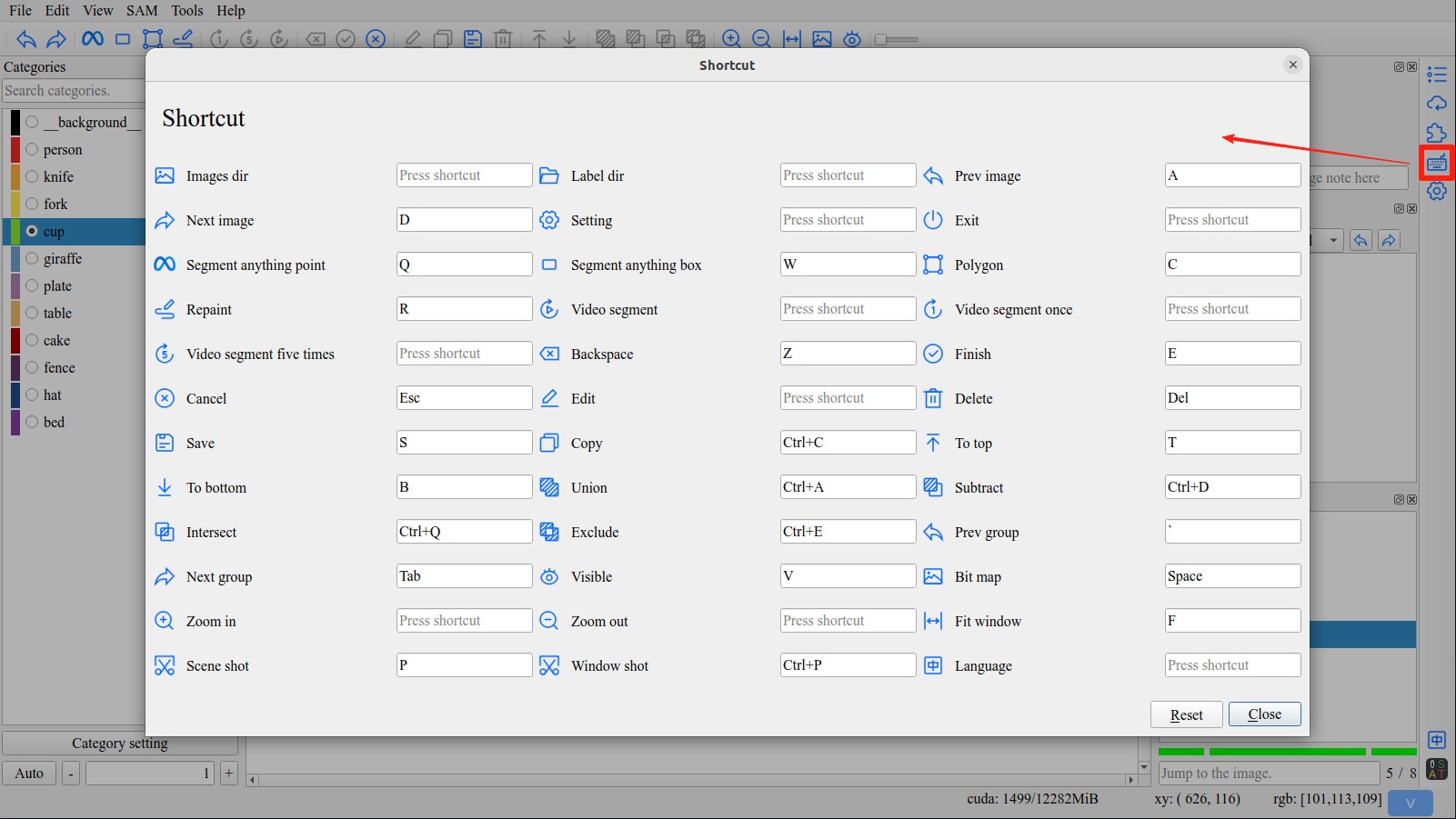

2. Shortcut

Click Shortcut button in right toolbar to open shortcut interface.


Tip

You can customize all shortcuts to suit your own preferences.

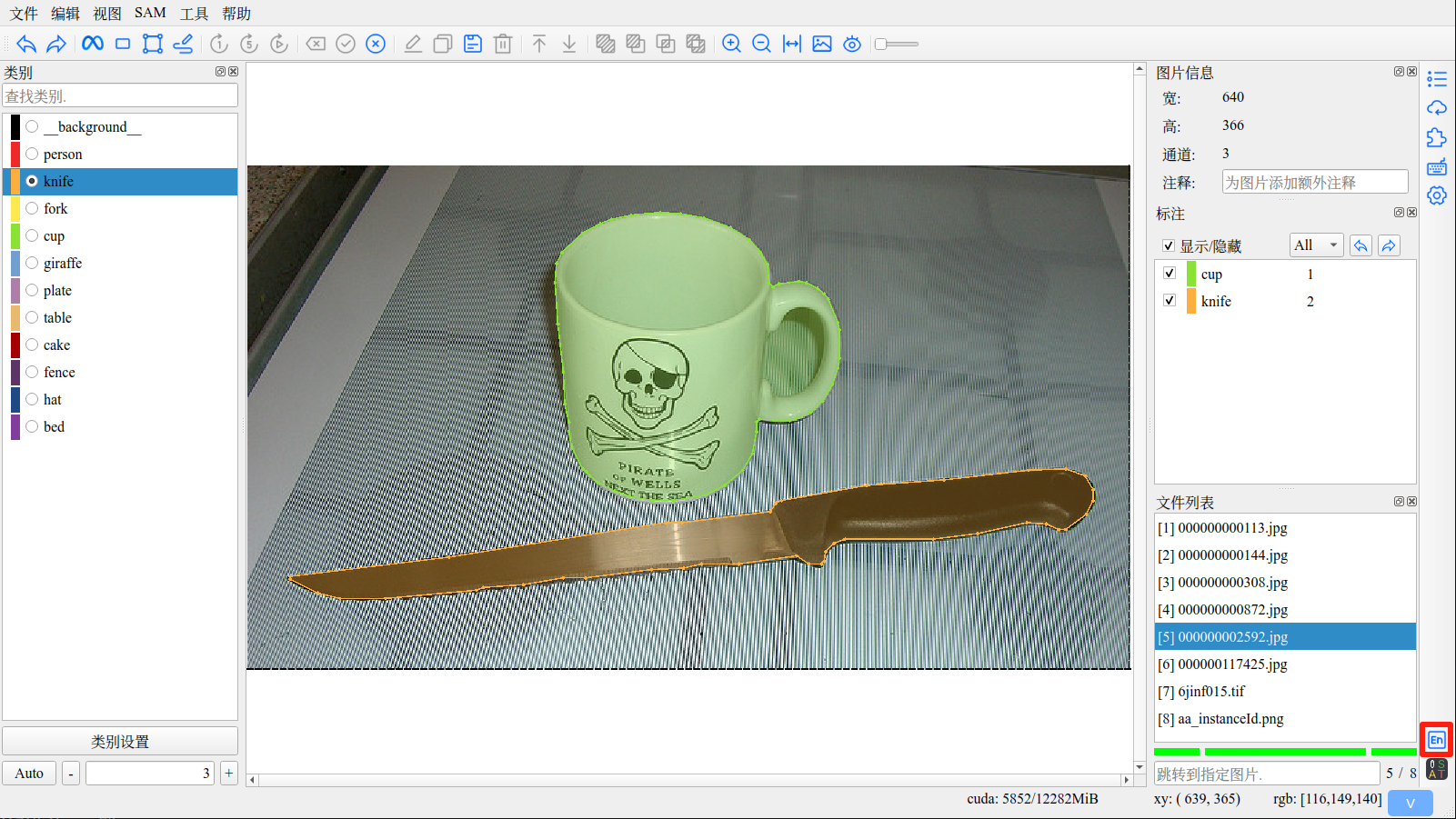

3. Language Switching

Click Language button in right toolbar to switch language.


Tip

The software provides two interfaces, Chinese and English, which can be switched at any time.
